FR5 – Epoxy glass laminate

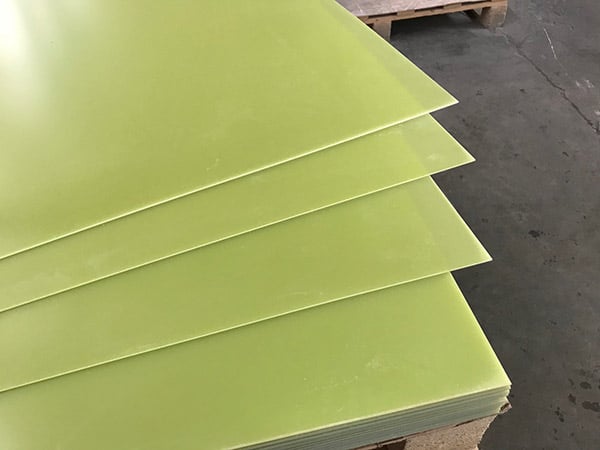

MDT is capable of manufacturing customised epoxy glass plates for the electromechanical or railway industry and for companies dealing with the printing of plastic insulation, transformers and supports.
Vetronite FR5 is a glass and epoxy-resin based layered material resistant to high temperatures, even more than FR4. It also boasts excellent mechanical and traction-resistant characteristics that make it useful for the production of insulating screws, nuts, bolts and insulating washers.
Please do not hesitate to contact us for more information.
Composition
LGlass cloth and epoxy resin laminate composition for high temperatures.
Properties
- Water absorption 22mg
- Fire class H(180°C)
- Thermal conductivity 0.3 W/mK
- Expansion coefficient 15 10 – 6/K
- Dielectric strength 14.2 KV/mm
- Insulation resistance 5×104
- Halogen free
Applications
Mechanical and electromechanical industry, press table printing sector.
Technical data sheet
Download here
An efficient and safe material
Vetronite FR5 laminates boast an excellent mechanical resistance thanks to the resin-impregnated rigid material that makes it extremely resistant to bending, impact, traction compression and flaking.
Halogen free, not very hazardous in case of smoke thanks to its low toxicity index, and with a good dimensional stability.
If you are looking for an FR5 laminate producer in the Milan are as well as all over Italy, choose MDT and contact us now.
